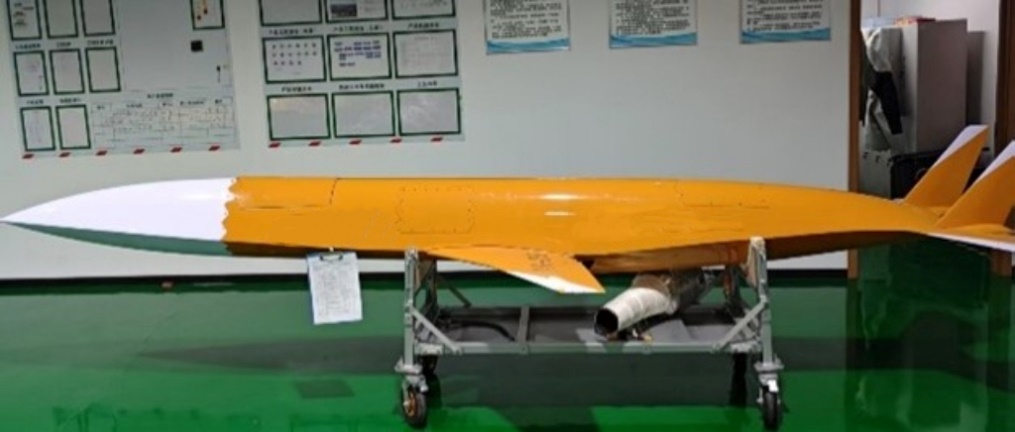

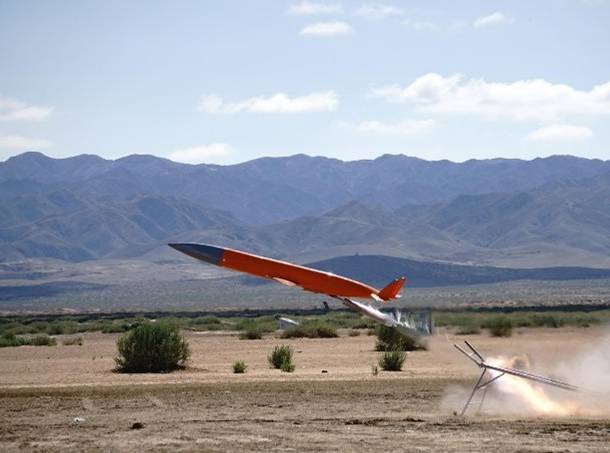

Target Drone System:Designed primarily for electronic countermeasures training, this system simulates the trajectory and electromagnetic signal characteristics of anti-ship missiles by integrating high-power radar signal targets, creating highly realistic maritime and air threat targets. It can coordinate with anti-radiation weapons to carry out full-process live-fire training, providing air defense and missile defense combat units with combat-realistic training targets.

Overall System Parameters

     a)Overall Dimensions: 4630mm (Length) × 1730mm (Width) × 643mm (Height);
     b)Flight Speed: ≥280 m/s;
     c)Endurance: 90 minutes.

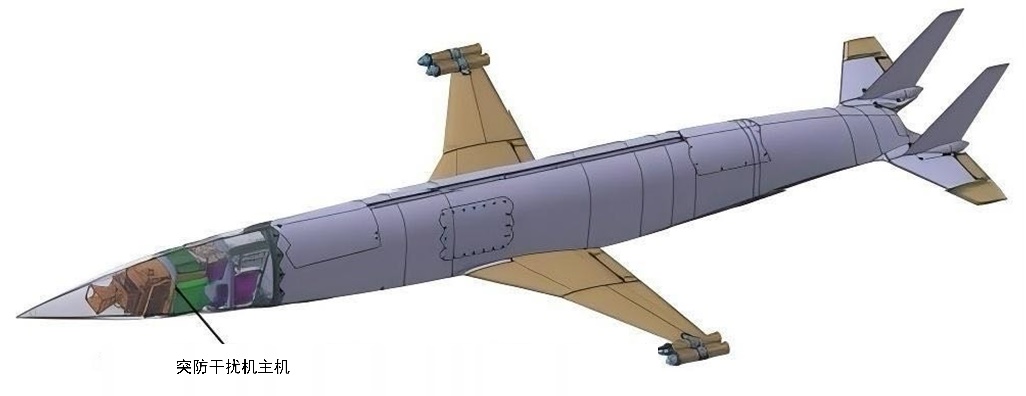

Penetration Jamming Payload Parameters

     a)Operating Frequency Bands: X Band, Ku Band;
     b)Instantaneous Bandwidth: ≥800 MHz;
     c)Receiver Sensitivity: Better than -65 dBm;
     d)Equivalent Radiated Power (ERP): ≥77 dBm (customizable).
