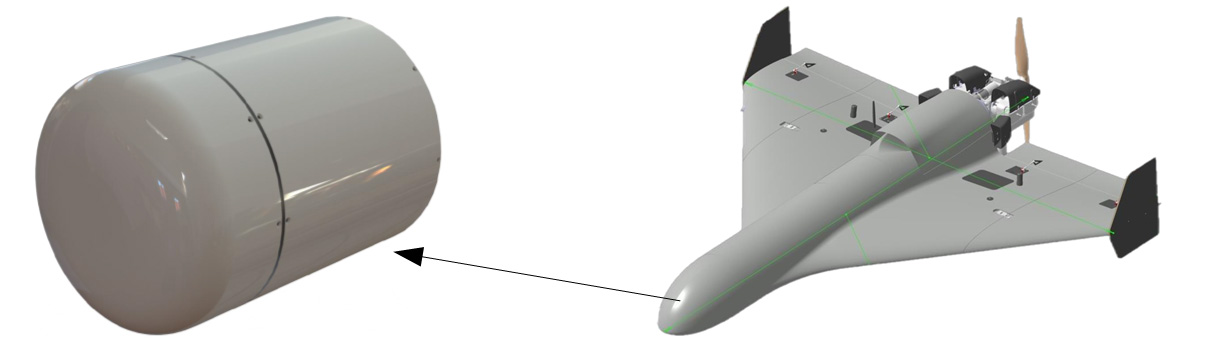

Anti-radiation UAV:Integrates anti-radiation equipment into the UAV airframe, enabling it to track target radars via parameter-loaded commands and continuously transmit angle-correction data to friendly UAVs for guided strikes against radar targets.

Overall System Parameters

a)Overall Dimensions: 2145mm (Length) × 2523mm (Width);
b)Flight Speed: ≥180–216 km/h;
c)Endurance: 3.3–6 hours.

Anti-Radiation Payload Parameters

a)Operating Frequency Band: 0.8 GHz – 18 GHz (customizable);
b)Beam Coverage:Horizontal: -30° ~ +30°,   Pitch: 0° ~ +30°;
c)Receiver Sensitivity: Better than -70 dBm;
d)Angle Measurement Error: Better than 2° (R.M.S).
