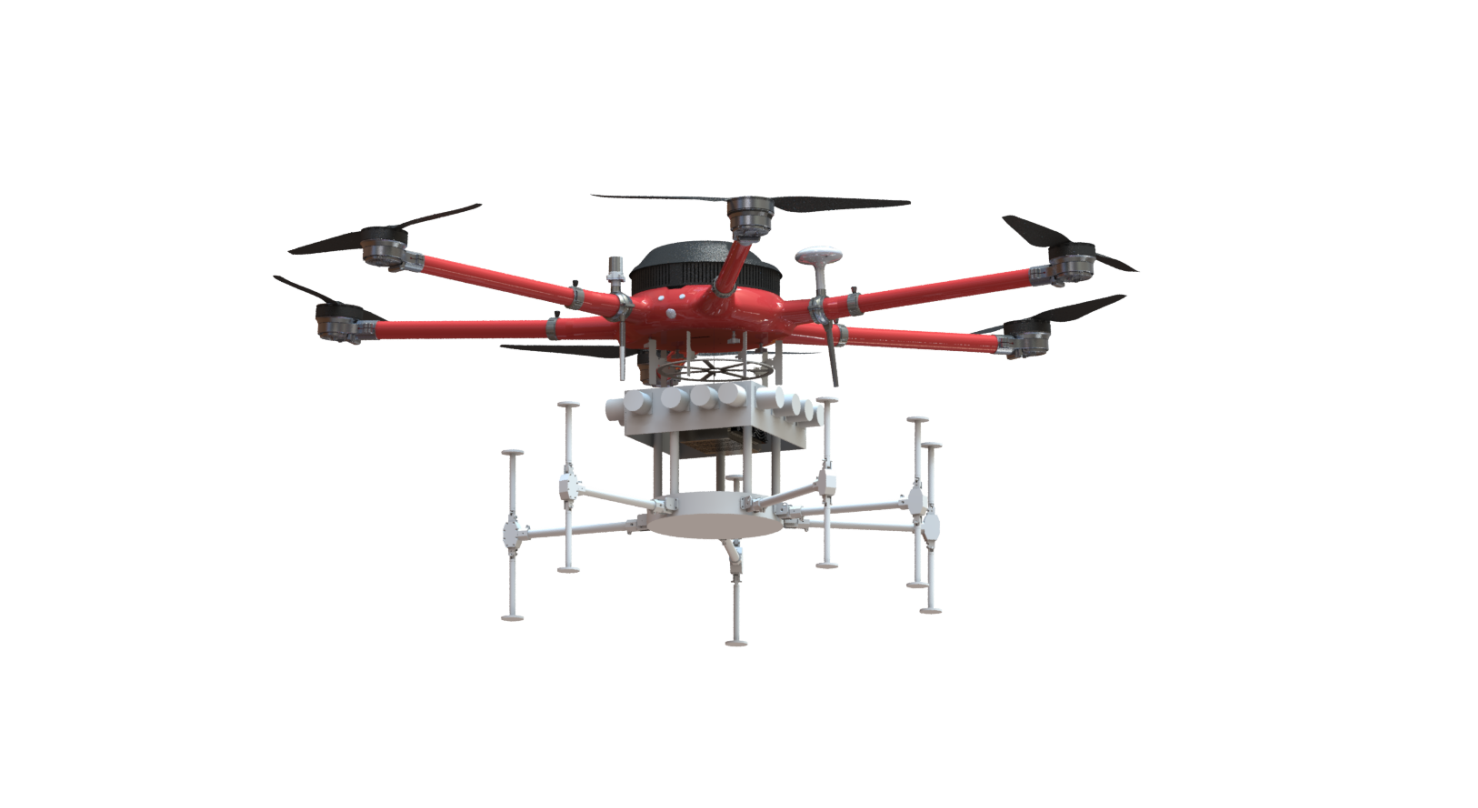

Signal Reconnaissance UAV: Integrates an integrated communication and radar signal reconnaissance system into a rotorcraft UAV, enabling real-time monitoring of external spectral information and perception of electromagnetic spectrum conditions in the surrounding airspace. It can simultaneously intercept, detect, analyze, and direction-find communication signals and radar signals, providing information support for our tactical command.

Overall System Parameters

a)Overall Dimensions: 1800mm (Length) × 1800mm (Width) × 850mm (Height);
b)Flight Speed: ≥20 m/s;
c)Endurance: 40 minutes (customizable).

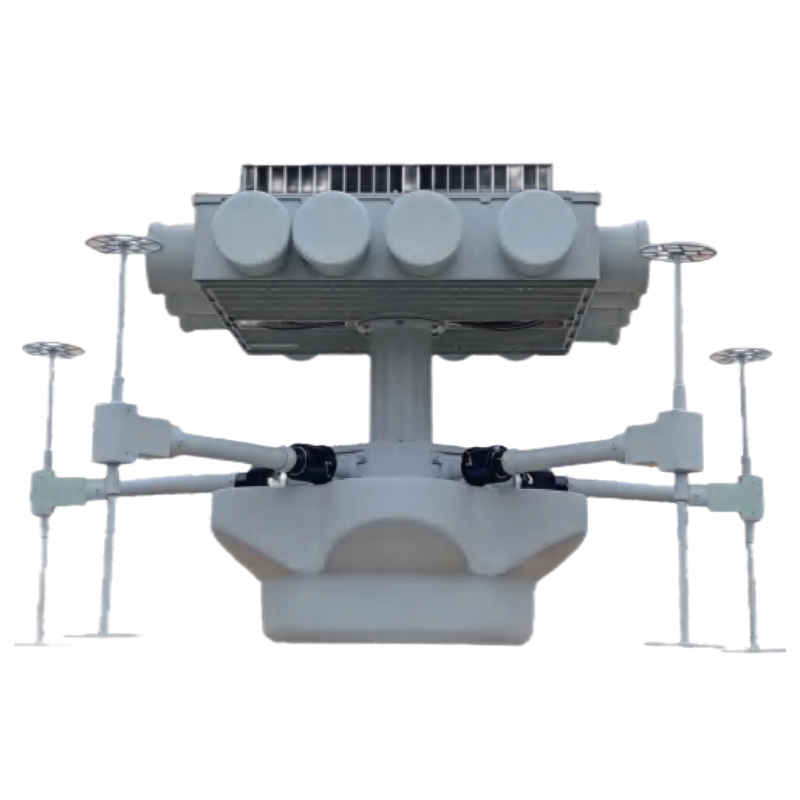

Signal Reconnaissance Payload Parameters

a)Operating Frequency Band: 30 MHz–18 GHz (customizable);
b)Beam Coverage: Horizontal 360°, Pitch ±30°;
c)Receiver Sensitivity: Better than -110 dBm;
d)Angle Measurement Error: ≤3° (RMS) @ 30 MHz–3 GHz,
                                                ≤1° (RMS) @ 2 GHz–18 GHz.
