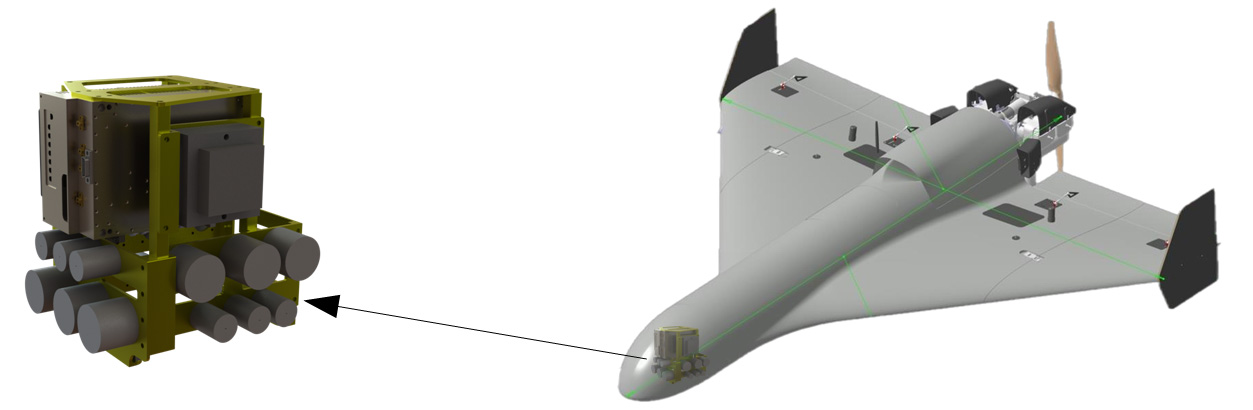

Radar Signal Reconnaissance UAV: Integrates a reconnaissance system into an unmanned aerial vehicle (UAV) to enable real-time monitoring of external spectral information and perception of electromagnetic spectrum conditions in the surrounding airspace. It can simultaneously intercept, detect, analyze, and direction-find multiple radar signals, providing information support for our tactical command.

Overall System Parameters

a)Overall Dimensions: 2145mm (Length) × 2523mm (Width);
b)Flight Speed: ≥180–216 km/h;
c)Endurance: 3.3–6 hours.

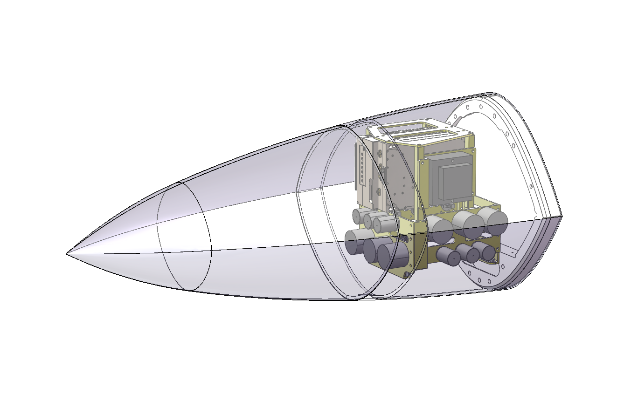

Signal Reconnaissance Payload Parameters

a)Operating Frequency Band: 2–18 GHz (customizable); b)
Beam Coverage: Horizontal 270°, Pitch ±30°; c)Receiver Sensitivity: Better than -70 dBm;
d)Angle Measurement Error: Better than 2° (R.M.S).
