The missile-borne penetration jamming equipment is designed to reduce the detection probability of enemy air defense early-warning radars during missile penetration. The equipment uses self-defense jamming to generate interference along the direction of the radar beam on the display screen, causing the radar to lose lock on the missile and improving the missile's survival rate.

a)Frequency Band: L/S/C/X ;
b)Instantaneous Bandwidth: ≥2 GHz (2 GHz～12 GHz);
c)Receiver Sensitivity: Better than -65 dBm;
d)Instantaneous Dynamic Range: ≥40 dB;

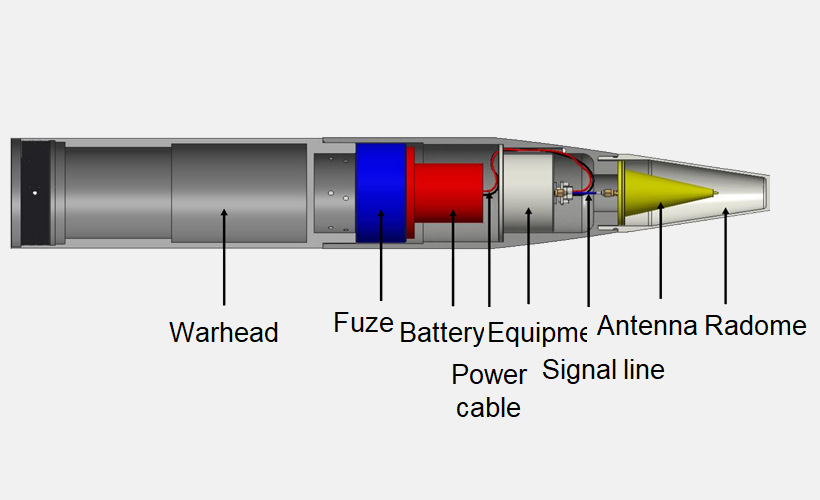

e)Applicable Missile Diameter Range: 120 mm～850 mm;
f)Jamming Modes:Composite jamming:
                               Multi-pulse jamming + Doppler noise combination，
                               Slice jamming + Doppler noise combination，
                               Sample jamming + Doppler noise combination.
